Pricing and Compatibility
The price above includes labour to fit to one of our Unimog Builds.

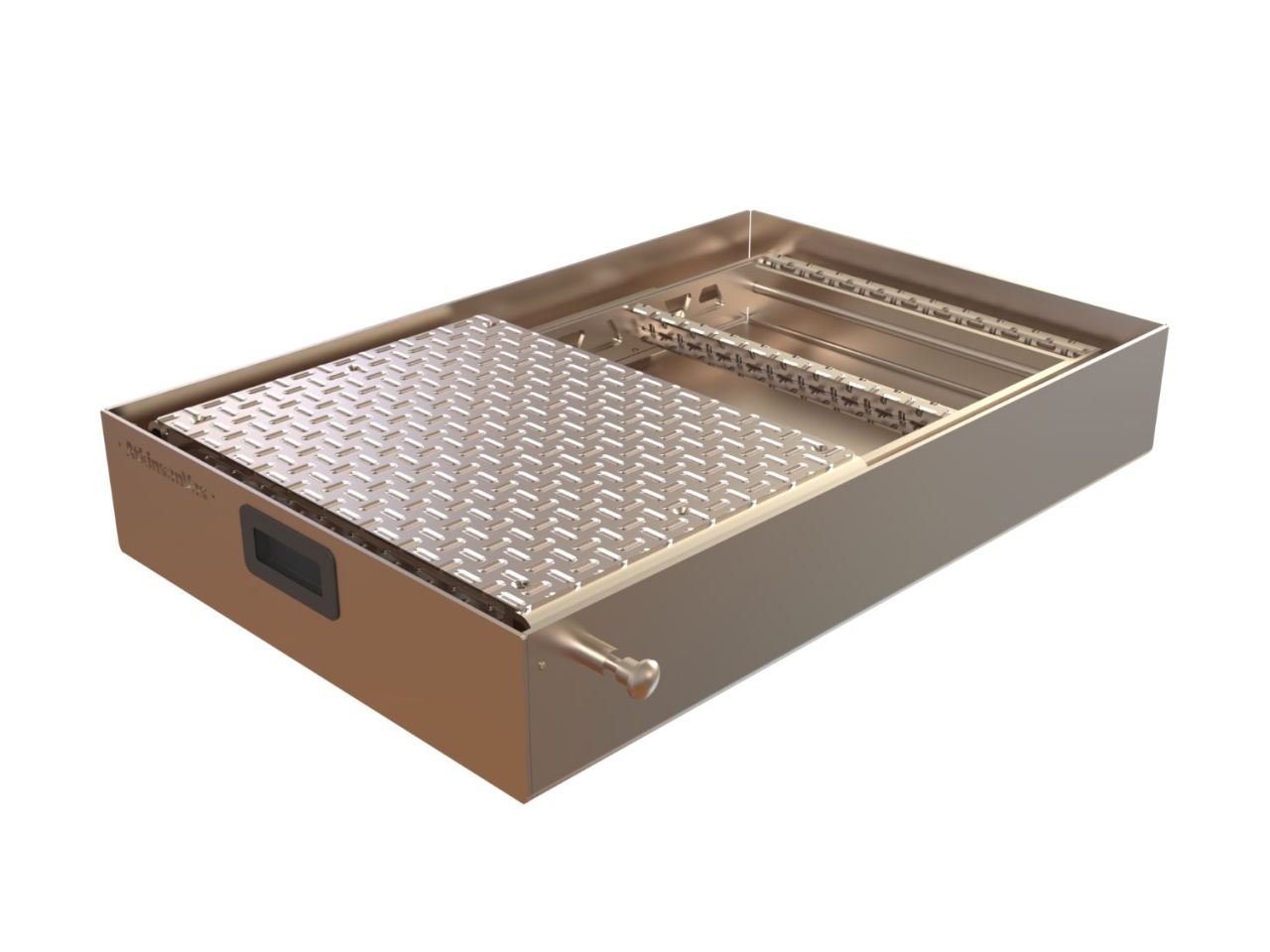

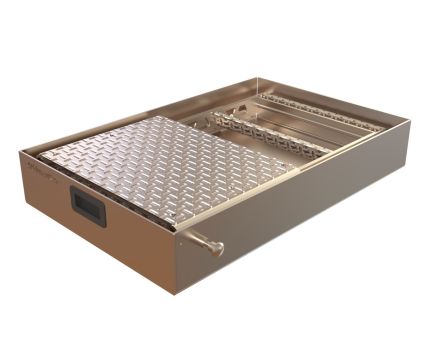

These steps are readily adaptable to fit most subframes - the closed dimensions are L x W x H: 815mm x 530mm x 135mm.
Access Steps - Slide Out
From £3820 + VAT INCLUDING FITTING
If you want the most compact, optimised to fit the space, permanently mounted access steps then this is the answer.
The gap between the edge of the box and the longitudinal members of the subframe is only 820mm so any steps must fit within this to allow enough clearance without raising the height of the subframe - The only issue being that the Unimog needs over 1000mm of steps to reach the box!
Within this 820mm we have fitted a 300mm pull out platform and 4 steps giving a height from the bottom rung to the bottom of the box of 980mm.

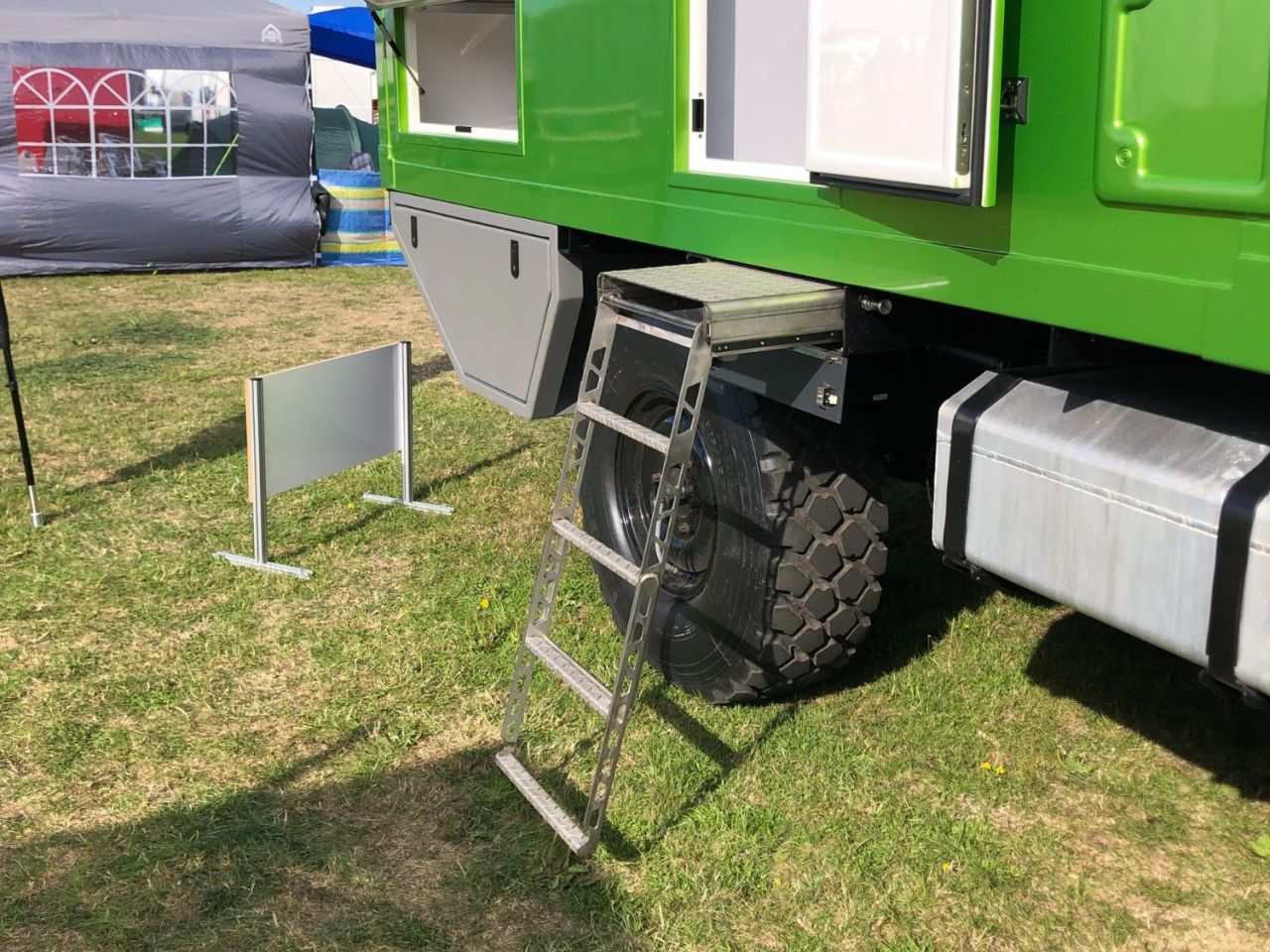

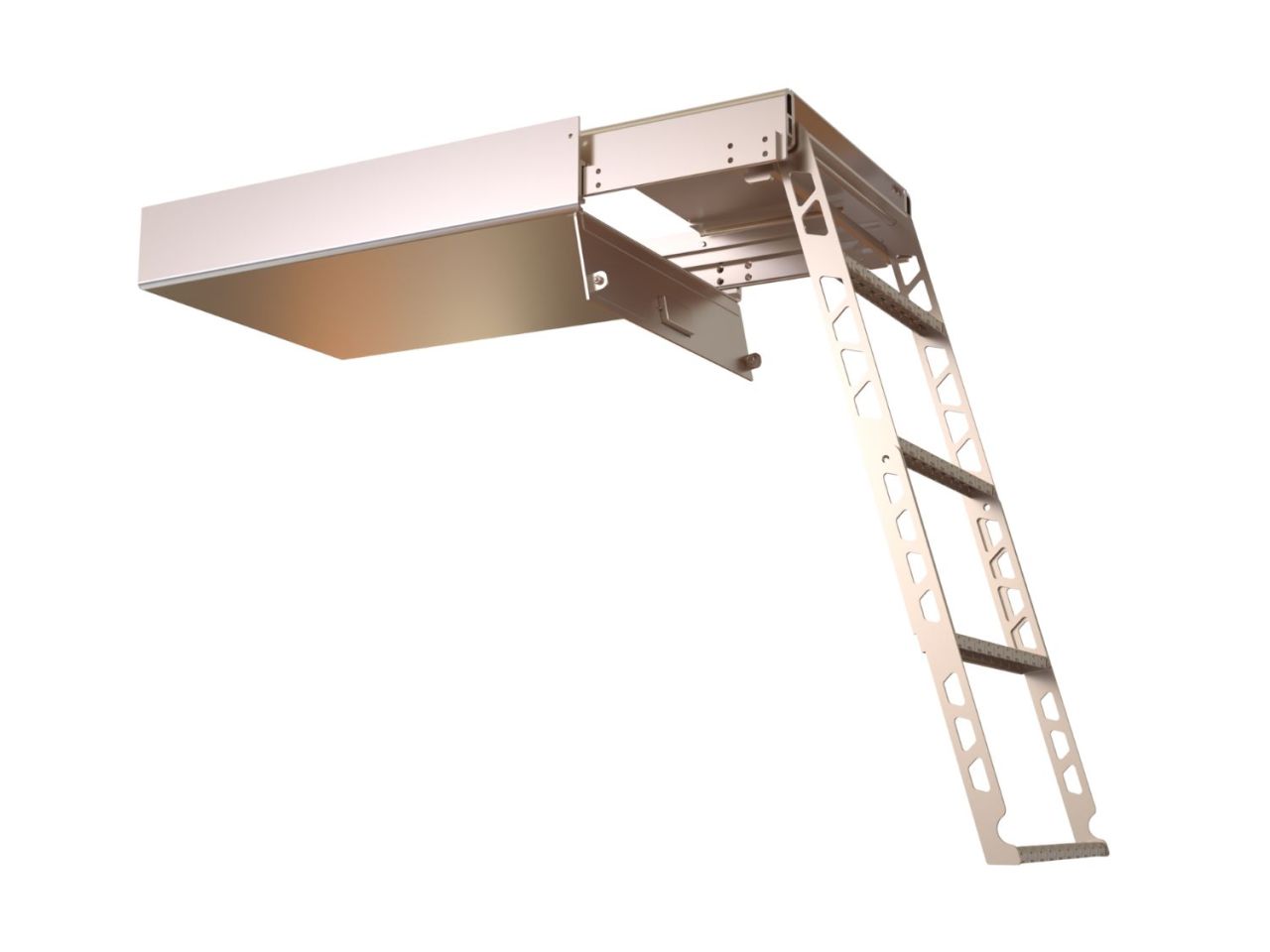

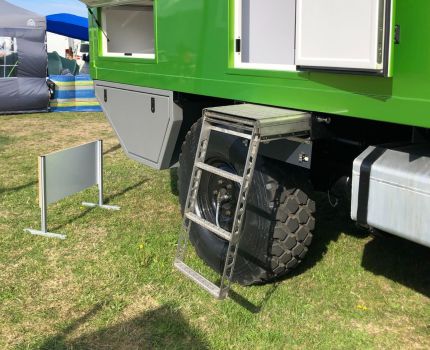

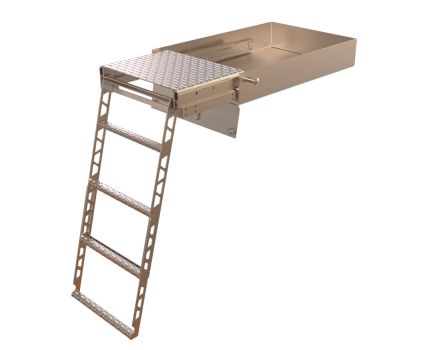

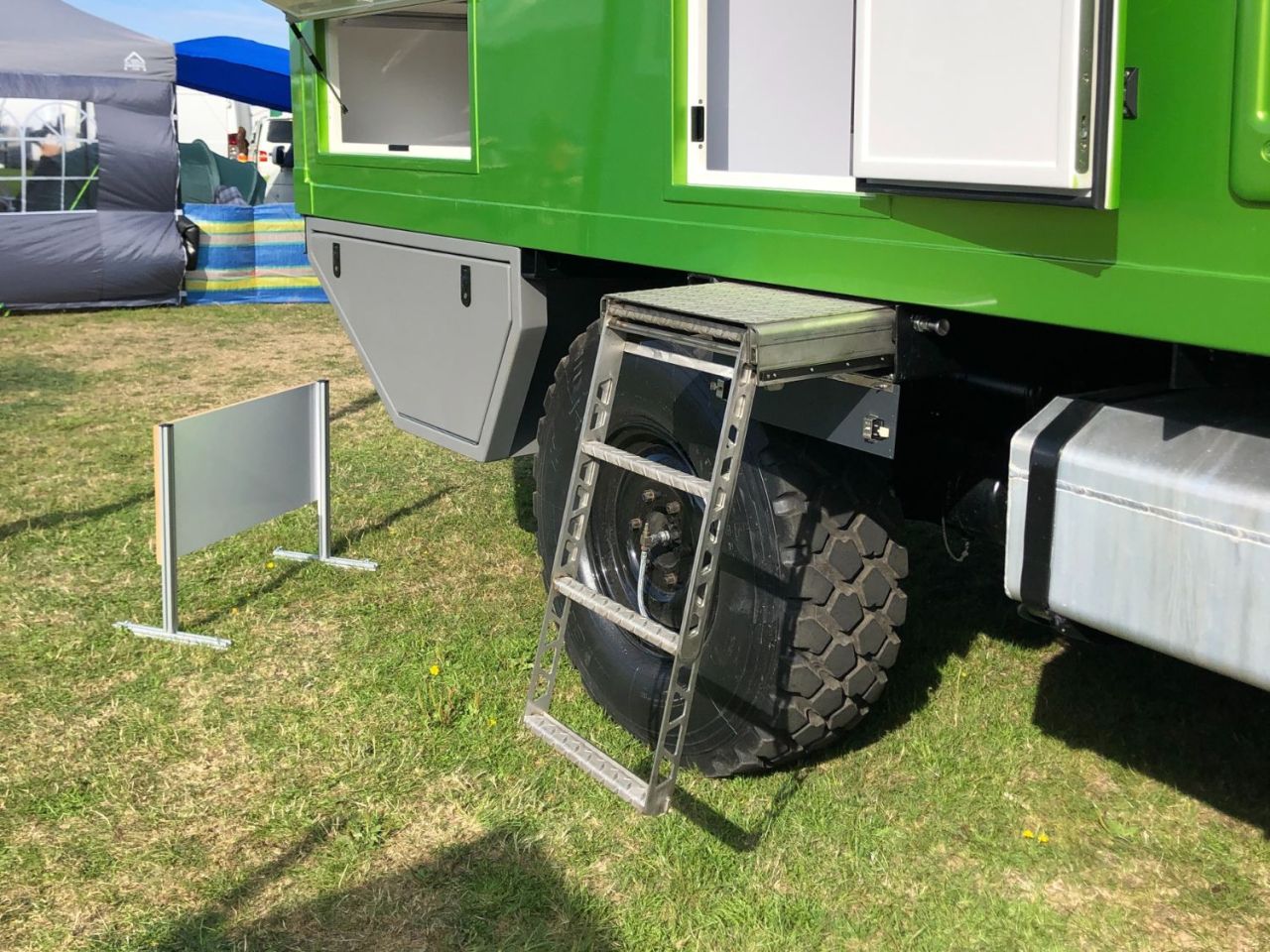

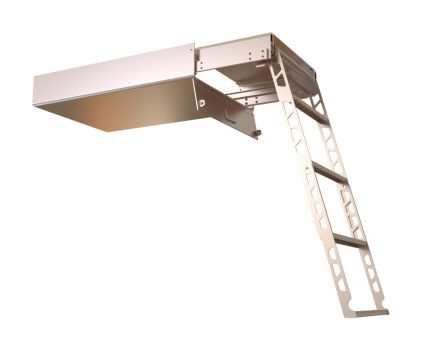

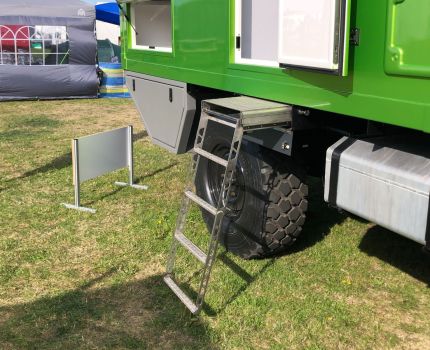

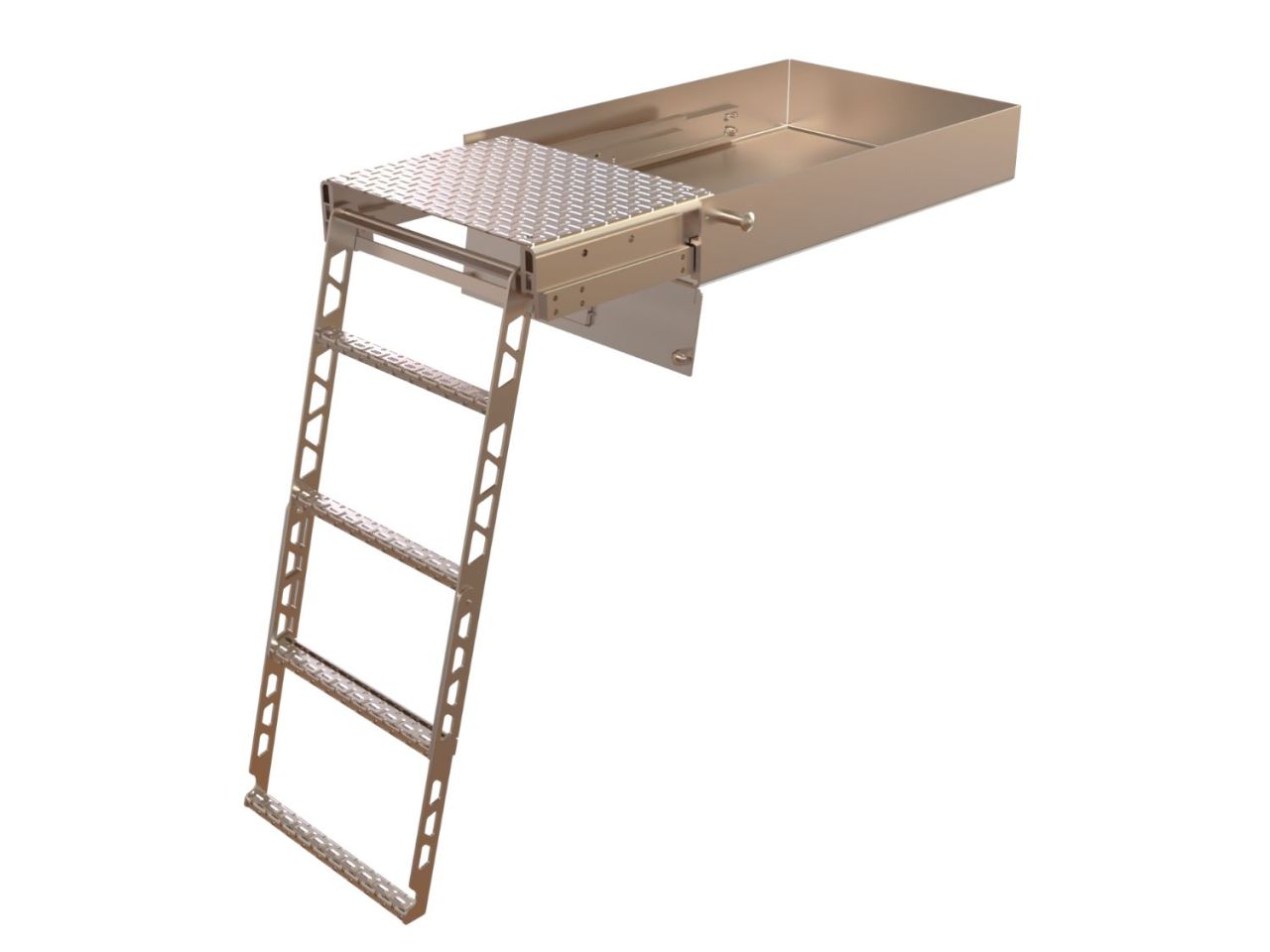

These ladder style steps bolt to the subframe and pull out to form a platform and a three rung ladder with an additional rung that pivots out to form the 4 rungs.
They have a fully stainless steel construction to ensure that they stay corrosion free and looking at their best.
